LTO-8 HH
Rethink Backup and Archive with LTO Tape Drives
Overland Storage Products
LTO-8 HH
LTO-8 HH Internal Drive, SAS, Bare
12 TB (Native)/30 TB (Compressed) - Black - 6Gb/s SAS1/2H Height - Internal - 300 MB/s Native - 750 MB/s Compressed - Linear Serpentine TAPE DRIVE BLACK
12 TB (Native)/30 TB (Compressed) - Black - 6Gb/s SAS1/2H Height - Internal - 300 MB/s Native - 750 MB/s Compressed - Linear Serpentine TAPE DRIVE BLACK
#TD-LTO8iSA
Our Price: Request a Quote
Our Price: Request a Quote
LTO-8 HH Internal Drive, FC, Bare
12 TB (Native)/30 TB (Compressed) - Black - Fibre Channel1/2H Height - Internal - Linear Serpentine TAPE DRIVE BLACK
12 TB (Native)/30 TB (Compressed) - Black - Fibre Channel1/2H Height - Internal - Linear Serpentine TAPE DRIVE BLACK
#TD-LTO8iFC
Our Price: Request a Quote
Our Price: Request a Quote
LTO-8 HH External Drive, SAS, Kit
12 TB (Native)/30 TB (Compressed) - SAS1/2H Height - External - Linear Serpentine - TAA Compliant DRIVE TAA COMPLIANT
12 TB (Native)/30 TB (Compressed) - SAS1/2H Height - External - Linear Serpentine - TAA Compliant DRIVE TAA COMPLIANT
#TD-LTO8xSA
Our Price: Request a Quote
Our Price: Request a Quote
More pricing below, click here
Please Note: All Prices are Inclusive of GST
LTO-8 HH

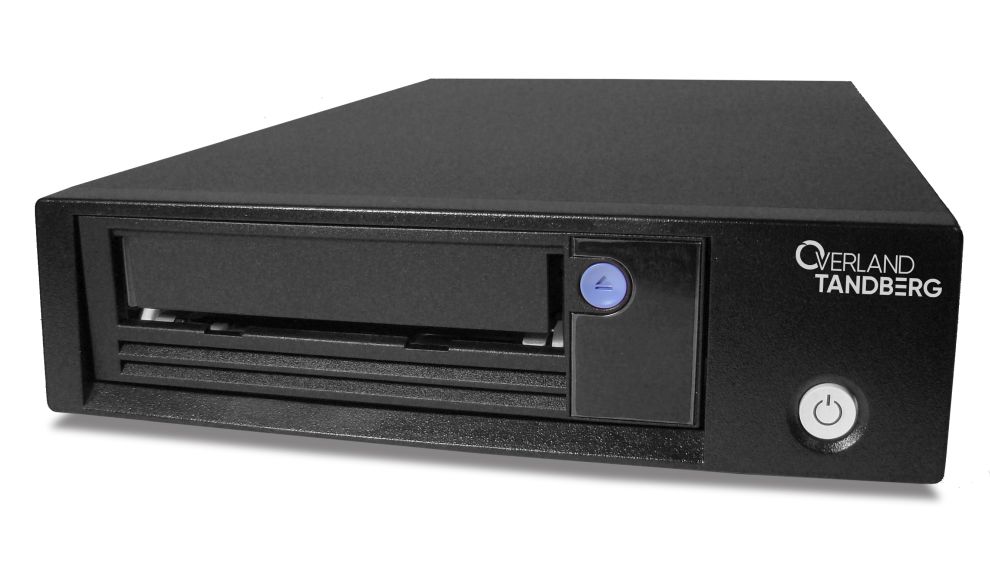

The Overland-Tandberg LTO-8 tape drive technology is the newest LTO-generation and follows the roadmap of the LTO consortium, which now includes 12 generations.
The uncompressed capacity has doubled to 12TB compared to the predecessor LTO-7. The compressed transfer rate remains the same and amounts to 2.7TB/h. LTO-8 is the optimal solution for capacity-hungry, performance-driven applications like in the media and entertainment industry, in imaging applications, in medical environments or for the collection of scientific data. The LTO-8 tape drive supports LTFS, WORM and AES 256-bit hardware encryption providing maximum protection for data stored off-site or in transit. LTO-8 drives are read/write compatible with LTO-7 media.
Features
- Capacity: 12TB / 30TB (native/compressed*)
- Performance up to 2.7 TB/h (compressed*)
- Low cost of ownership and low media cost
- Enterprise features and performance in a small form factor
- Future proof with 12-generation roadmap
- Data speed matching reduces mechanical wear and extends tape life
- Proven reliability MTBF of 250,000 hrs at 100% duty cycle
- LTFS, WORM and AES 256-bit encryption
- 30 year archival life
- 3 years Advanced Replacement Service warranty
Key Benefits:
- Backup as much as 30TB of data on a single cartridge
- Reduce your backup window and use of server and network resources with high-performance data transfer rates
- Maximize your investment and ensure that your data is safe with proactive drive and media management
- Secure confidential information and address compliance issues with hardware data encryption and WORM support
- Ensure effortless connectivity with widespread server and backup software support
- Provide backward compatibility to legacy tape cartridges in automation environments
LTO-7 Type M
LTO-7 type M media are LTO-7 media, which are initialized in a LTO-8 drive. In addition, dedicated barcode labels will be used to mark these media in an automation environment. LTO-7 type M media provide a capacity of 9TB, which is a perfect choice for customers who do not need the total capacity of a LTO-8 media.
* Assumes compression ratio of 2:1 on LTO-4/5 and 2.5:1 on LTO-6,7 and 8
Specifications:
| Capacity (native/compressed) | 12TB / 30TB* |
| Transfer Rate (native/compressed) | 300 MB/s / 750 MB/s* |
| Dynamic Speed Matching | 112-300MB/s |
| Memory Buffer Size | 1GB |
| Data Access Speed | 50 sec. |
| Data Compression | 16KB (2.5:1) |
| Encryption | AES 256-bit |
| LTFS | Yes |
| Recording format | LTO Ultrium 8 |
| Interface | 6GB SAS/SFF 8088 |
| Reliability | |
| MTBF Hours (100% duty cycle) | 250,000 hours @ 100% duty cycle |
| Head Life | 100,000 tape running hours |
| Hard Error Rate | 1 x 10(-19) bits |
| Environmental Specifications | |
| Temperature (Operating) | 50° - 100°F (10°C - 38°C) |
| Temperature (Non-operating) | -40° - 151°F (-5°C - 65°C) |
| Relative Humidity (Operating) | 20 - 80% (non-condensing) |
| Relative Humidity (Non-operating) | 10 - 95% (non-condensing) |
| Power Requirements | |
| Idle | 4 W |
| Typical | 30 W |
| Maximum | 42 W |
| Power Supply/ Required (int) | 5V DC, 3.7A, 12 V, 0.9A |
| Certification | CSA Certification to C22.2, No. 60950 (cCSAus), TUV EN60950 (IEC 60950), CE Declaration of Conformity, FCC 47 CFR Parts 15, NOM, VCCI. C-TICK, RRL, BSMI, GOSH CB Certificate and Report (IEC 60950) |
| Warranty | 3-years Advance Replacement Service Warranty** |
| Dimensions | |
| Physical Internal / External (HxWxD) |
1.7 in. x 5.8 in. x 8.3 in.(43.2mm x 147.3mm x 210.8mm) / 2.3 in. x 8.4 in. x 13.1 in. (58.4mm x 213.4mm x 332.7mm) |
| Weight | |
| Weight Out of box, Internal | 3.7 lbs. (1.7 kg) |
| Weight Out of box, External | 9.4 lbs. (4.3 kg) |
* Assumes compression ratio 2:1 on LTO-2/3/4/5 & 2.5:1 on LTO-6/7/8
** Availability dependent on location
Tape Drive Specifications
| LTO-8 | LTO-7 | LTO-6 | LTO-5 | |
|---|---|---|---|---|
| Capacity (native) | 12TB | 6TB | 2.5TB | 1.5TB |
| Capacity (Compressed) | 30TB | 15TB | 6.25TB | 3.0TB |
| Transfer Rate (native) | 300MB/s (1TB/hr.) | 300MB/s (1TB/hr.) | 160MB/s (576GB/hr.) | 140MB/s (504GB/hr.) |
| Transfer Rate (compressed) | 750MB/s (2.7TB/hr.) | 750MB/s (2.7TB/hr.) | 400MB/s (1.4TB/hr.) | 280MB/s (1TB/hr.) |
| Ratio | 2.5:1 | 2.5:1 | 2.5:1 | 2:1 |
| Interface | 6Gb SAS/SFF 8088 | 6Gb SAS/SFF 8088 | 6Gb SAS/SFF 8088 | 6Gb SAS/SFF 8088 |
| Configurations | Internal; external/desktop | Internal; external/desktop | Internal; external/desktop | Internal; external/desktop |
| Internal Dimensions (HxWXD) | 1.7 in. x 5.8 in. x 8.3 in. 43.2mm x 147.3mm x 210.8mm |
1.7 in. x 5.8 in. x 8.3 in. 43.2mm x 147.3mm x 210.8mm |
1.7 in. x 5.8 in. x 8.3 in. 43.2mm x 147.3mm x 210.8mm |
1.7 in. x 5.8 in. x 8.3 in. 43.2mm x 147.3mm x 210.8mm |
| External Dimensions (HxWxD) | 2.3 in. x 8.4 in. x 13.1 in. 58.4mm x 213.4mm x 332.7mm |
2.3 in. x 8.4 in. x 13.1 in. 58.4mm x 213.4mm x 332.7mm |
2.3 in. x 8.4 in. x 13.1 in. 58.4mm x 213.4mm x 332.7mm |
2.3 in. x 8.4 in. x 13.1 in. 58.4mm x 213.4mm x 332.7mm |
| Internal Weight | 3.7 lbs. / 1.7 kg | 3.7 lbs. / 1.7 kg | 3.7 lbs. / 1.7 kg | 3.7 lbs. / 1.7 kg |
| External Weight | 9.4 lbs. / 4.3 kg | 9.4 lbs. / 4.3 kg | 9.4 lbs. / 4.3 kg | 9.4 lbs. / 4.3 kg |
| Read/Write Compatibility | Write: LTO-8, LTO-7 Read: LTO-8, LTO-7 |
Write: LTO-7, LTO-6 Read: LTO-7, LTO-6, LTO-5 |
Write: LTO-6, LTO-5 Read: LTO-6, LTO-5, LTO-4 |
Write: LTO-5, LTO-4 Read: LTO-5, LTO-4, LTO-3 |
| MTBF (Mean Time Between Failure) | 250,000 hours @100% duty cycle | 250,000 hours @100% duty cycle | 250,000 hours @100% duty cycle | 250,000 hours @100% duty cycle |
| Buffer Size | 1024MB | 1024MB | 512MB | 256MB |
| Data Rate Matching (native) | 112-365MB/s | 101-306MB/s | 40-160MB/s | 40-140MB/s |
| Power Consumption (maximum) | 30 watts | 24 watts | 24 watts | 24 watts |
| Temperature (operating) | 50° - 105°F 10° - 40°C |
50° - 105°F 10° - 40°C |
50° - 105°F 10° - 40°C |
50° - 105°F 10° - 40°C |
| Humidity (operating) | 20-80% (non-condensing) | 20-80% (non-condensing) | 20-80% (non-condensing) | 20-80% (non-condensing) |
| Standard Warranty | 3 Years. bronze advanced exchange | 3 Years. bronze advanced exchange | 3 Years. bronze advanced exchange | 3 Years. bronze advanced exchange |
Documentation:
Download the LTO Tape Drive Datasheet (PDF).
